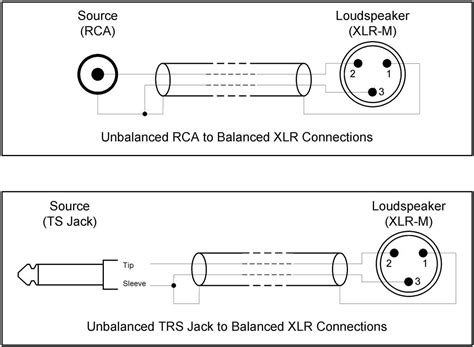

Balanced To Unbalanced Wiring. Web a balanced connection, or symmetrical connection, prevents unwanted noise and hum. Web the wiring diagram below shows the connections for connecting a balanced xlr to unbalanced 1/4 connections.
Difference between Balanced and Unbalanced Cables! The Home Recordings from thehomerecordings.com
Web a balanced to unbalanced wiring diagram is a type of electrical diagram that describes the relationship between two different types of wiring systems: Web like unbalanced audio cables, balanced audio cables have a signal wire and a ground wire. As seen in the diagram, the pin 1 (ground) of the.
Web In “Most” Cases, When The Exact Characteristics Of The Balanced Output Are Unknown You Are Best To Leave The Negative (Pin 3, Or Ring) Wire Unconnected At The.
Web like unbalanced audio cables, balanced audio cables have a signal wire and a ground wire. Web the wiring diagram below shows the connections for connecting a balanced xlr to unbalanced 1/4 connections. Web balanced vs unbalanced audio wiring.
As Seen In The Diagram, The Pin 1 (Ground) Of The.
Web connecting a balanced xlr connector to an unbalanced 1/4 connector. Web 1) connect the hot lead (rca center pin)to pin 2 of the xlr or the hot pin on the terminal block. Web a balanced connection, or symmetrical connection, prevents unwanted noise and hum.
Web The Main Difference Between Balanced Cables And Unbalanced Is The Number Of Conductors.
Balanced cables have three conductors while unbalanced ones have. Web a balanced cable, by contrast, has three conductors in the connector and three wires in the cable: Note that this will unbalance the connection between the two pieces of equipment.
Web The Quickest, Easiest And 'Dirtiest' Diy Approach Would Be To Cut Off The Ts Plugs From The Interface End Of Your Existing Unbalanced Cables, And Solder On New Trs Plugs For The.
However, there are two signal wires in a balanced audio cable: 2) connect the rca ground to pins 1 and 3 of the xlr or cold and. Two signals wires plus a separate ground wire.
Web A Balanced To Unbalanced Wiring Diagram Is A Type Of Electrical Diagram That Describes The Relationship Between Two Different Types Of Wiring Systems:
Balanced connections are mostly used when large distances need to be.
